FOR SALE

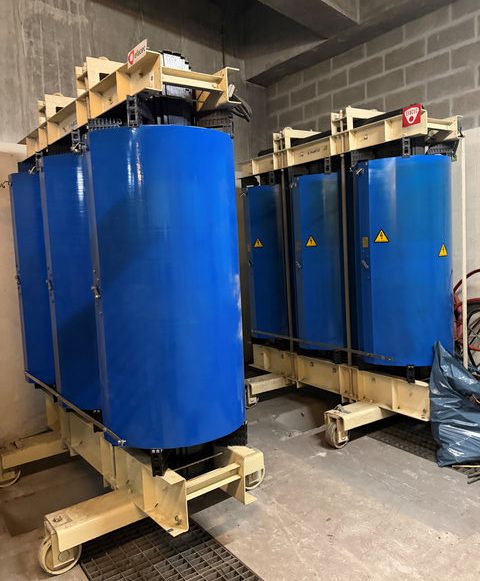

EFACEC POWERCAST CAST RESIN DRY-TYPE POWER TRANSFORMERS

2 Units Available – Excellent Industrial Condition

Premium Portuguese-Made Distribution Transformers

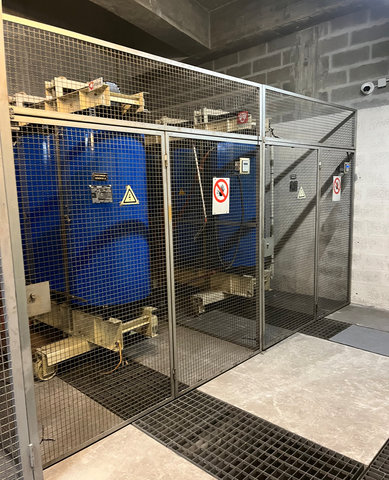

We are offering two (2) EFACEC PowerCast Cast Resin Dry-Type Distribution Transformers, manufactured in Portugal and removed from a fully operational industrial power plant.

These transformers are renowned for their exceptional reliability, low maintenance requirements, and long service life, making them ideal for industrial facilities, power generation plants, renewable energy projects, commercial buildings, hospitals, and data centres.

Technical Specifications

Manufacturer: EFACEC – Portugal

Model: PowerCast

Type: Cast Resin Dry-Type Transformer (Encapsulated)

Quantity Available: 2 Units

Rated Power: 3,700 kVA

Year of Manufacture: 1999

Frequency: 50 Hz

Phases: 3

Cooling: AN (Air Natural)

Vector Group: YNd7

Rated HV Voltage:

• 15,750 V
• 15,375 V
• 15,000 V (Nominal)
• 14,625 V
• 14,250 V

LV Voltage: 6,300 V

Short Circuit Impedance: 6.8%

HV Current: 142.4 A

LV Current: 339.1 A

Insulation Class: Class F

Protection Rating: IP00

Approximate Weight: 8,200 kg
